Control System Design Demo GUI

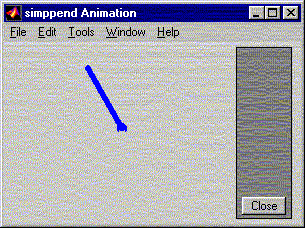

Control Systems Design Demo is a simple MATLAB GUI. Several examples of controller design procedures can be examined using this graphical interface. All the design procedures are based on algebraic design methods and involve the Polynomial Toolbox functions as a computational tool. Single - input - single - output (SISO) system is considered (inverted pendulum). Employ this GUI to explore particular design procedures by expecting related m-files, change their parameters, run simulations and visualize the results!

Visit the PolyX Download Site to get the demo for free!
